TPS22965DSGR Integrated Circuit IC Power Driver IC N Channel 6A 8-WSON

TPS22965DSGR Power Switch/Driver 1:1 N-Channel 6A 8-WSON (2x2)

The TPS22965x is a single channel load switch that provides configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8 V to 5.7 V and can support a maximum continuous current of 6 A. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. In the TPS22965, a 225-Ω on-chip load resistor is added for quick output discharge when switch is turned off.

Features

• Integrated Single Channel Load Switch

• Input Voltage Range: 0.8 V to 5.7 V

• Ultra-Low On Resistance (RON) – RON = 16 mΩ at VIN = 5 V (VBIAS = 5 V) – RON = 16 mΩ at VIN = 3.6 V (VBIAS = 5 V) – RON = 16 mΩ at VIN = 1.8 V (VBIAS = 5 V)

• 6-A Maximum Continuous Switch Current

• Low Quiescent Current (50 µA)

• Low Control Input Threshold Enables Use of 1.2-, 1.8-, 2.5-, and 3.3-V Logic

• Configurable Rise Time

• Quick Output Discharge (QOD) (Optional)

• SON 8-pin Package With Thermal Pad

• ESD Performance Tested per JESD 22 – 2000-V HBM and 1000-V CDM

Applications

• Ultrabook™

• Notebooks and Netbooks

• Tablet PC

• Consumer Electronics

• Set-top Boxes and Residential Gateways

• Telecom Systems

• Solid State Drives (SSDs)

ORIGINAL

Our company ensures that each batch of products comes from the original factory, and can provide original labels and professional testing agency reports.

PRICE

We provide a variety of quotation channels, and sign the order contract after negotiation.

TRANSACTION

After communication and agreement, we will guide you to arrange payment.

DELIVERY CYCLE

Delivery on the same day, generally 5-12 working days, may be slightly delayed during the epidemic, we will follow up the whole process.

TRANSPORT

We will choose the appropriate transportation mode according to your country.

PACKAGING

After communication with you, we will choose the appropriate packaging method according to the weight of the goods to ensure the safe delivery of the goods.

TPS22965DSGR Integrated Circuit IC

Integrated Circuit IC 6A 8-WSON

TPS22965DSGR Power Driver IC

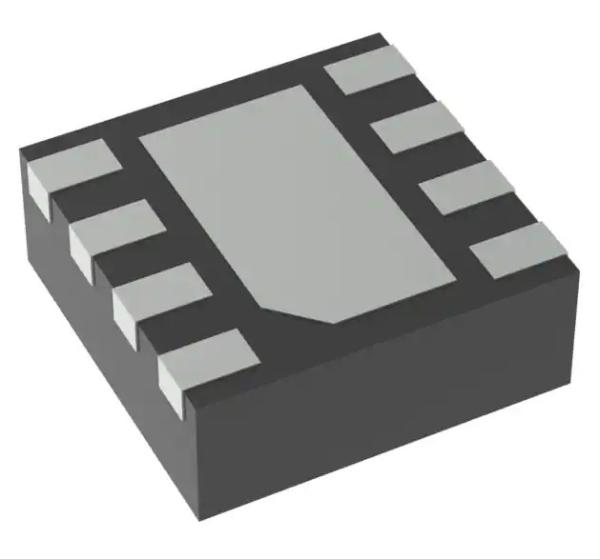

TPS22965DSGR Integrated Circuit IC Power Driver IC N Channel 6A 8-WSON Images
